Project Title : Lar Dam Reservoir Pumping Station -Turn Key

Location : Iran - Tehran
Status : Completed - Pumping Station
Start Date : 1998 End Date : 2000
Technical Specifications :

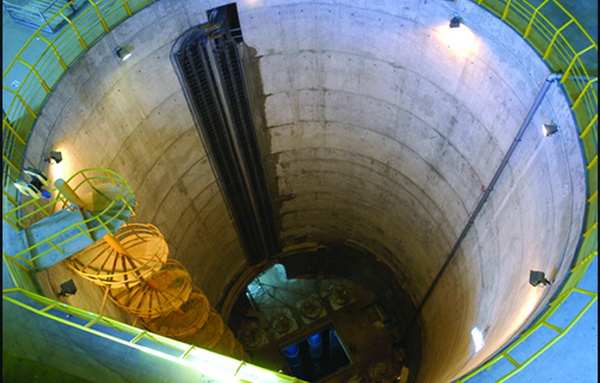

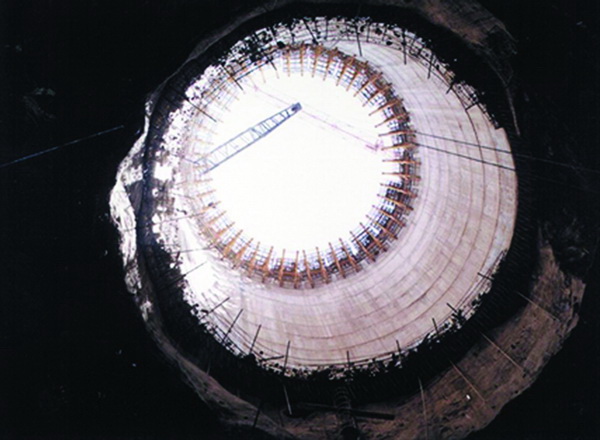

Tunnel and shaft excavations: 27,000 m3

Open excavations: 30,000 m3 Consolidation grouting: 5,000 m

Surface stabilization: 7,800 m2

Steel works: 850 ton

Formworks: 8,600 m2

Concrete: 8,800 m3

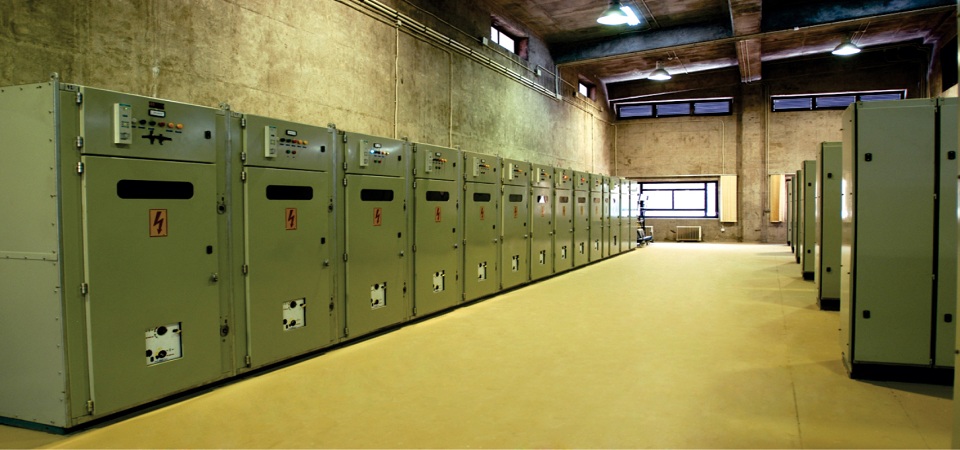

Control and shaft buildings: 2,200 m2

 Employer

Tehran Regional Water Authority

Engineer (Supervisor)

Tehran Boston Consulting Engineers

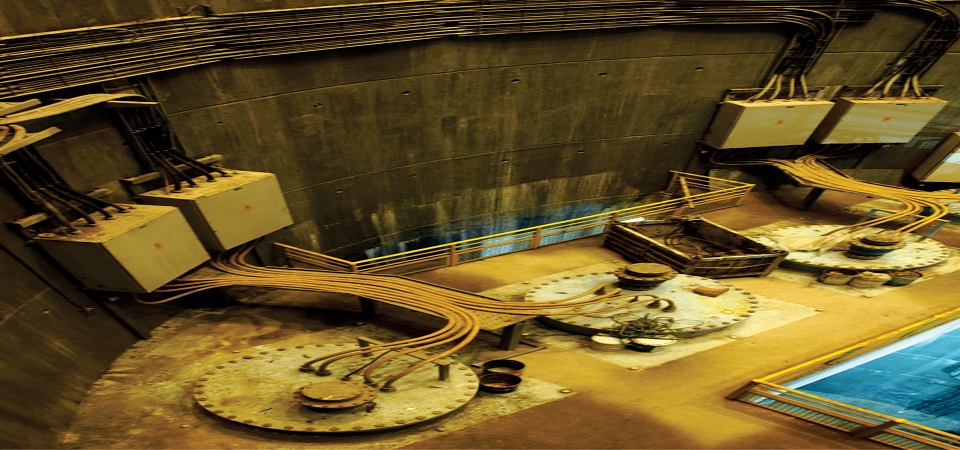

Pumping Discharge

18.5 m3/s with 10 m head

8.5 m3/s with 20 m head

-------------------------------------

Updated Contract Price:

63,000,000 USD



Description :

This project located at right bank of Lar dam reservoir, near Polur city in Tehran province. Special structure of bed rock at right bank of reservoir (existence of Karstic zone with lots of faults) causes escaping of water from the bed and bulwarks of the reservoir. This flow might be more than 5 m3/s. The more consumption the lower level of water, and the intake tunnel will be unusable. So a pumping station was constructed with maximum discharge of 18.5 m3/s for supplying water to Lar-Kalan water transmission tunnel.
