Project Title : Ganjgah Sorkh Abad Road (Lots 2, 3, 4)

Location : Iran - Ardebil
Status : Completed - Road
Start Date :

Contract No.1                   2004

Contract No.2                   2011

End Date :

Contract No.1                   2011

Contract No.2                   2013

Technical Specifications :

Total length of project: 20 km

Totally 9 tunnels with total length of 3,160 m, the longest one is 1,060 m long)

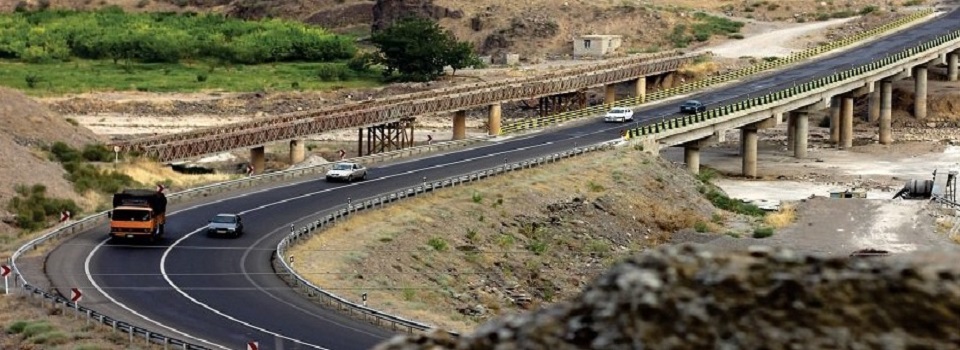

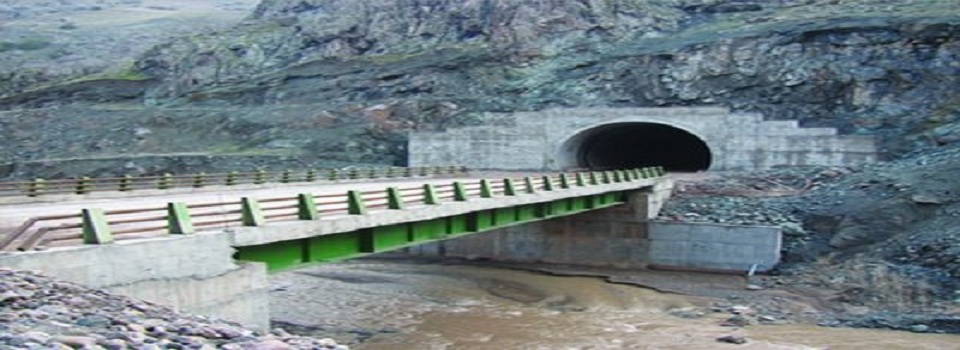

Totally 9 great bridges with total length of 636 m, the largest are Ghezelozan bridge with 8 spans each one 21 m long, and Mazra'e bridge with 5 spans each one 20 m long, and one single span steel bridge 36 m long.

Totally 3 galleries with total length of 230 m

Totally 60 culverts

Retaining walls in concrete or masonry, totally more than 3,200 m

Earth works: 5,500,000 m3

Steel works:6,500 ton

Heavy steel works: 1,300 ton

Formworks: 180,000 m2

Concrete: 240,000 m3

Masonry: 110,000 m3

Sub base: 40,000 m3

Base: 19,000 m3

Asphalt: 65,000 ton

Access roads: 80 km

Employer

Ministry of Road and Transportation

Engineer

Passillo Consulting Engineers

Total Updated Contract Prices

223,000,000 USD




Description :

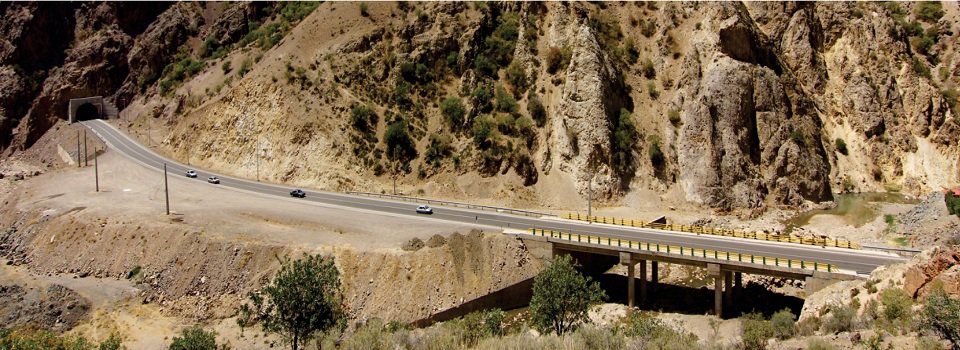

This project located at 90 km south of Ardebil city, from Firozabad village of Khalkhal toward Sorkhabad. The project is in one of the most impossible districts of the country that passes through west part of Alborz Mountains. The necessity of 9 tunnels, 9 bridges and 3 galleries in this 20 km road indicates the difficulty of the work. For execution of the main road near to 80 km access road has been constructed.
